205 North Quay大楼并非通过刻意标新立异的形式来彰显其商业价值，而是将一座纤细高效的结构体，如同缩封包装一般，包裹在一层同样巧妙且先进的围护结构之中，该设计专为布里斯班的亚热带气候量身打造。为实现幕墙的高玻璃占比和可见光透射率（VLT），以及优异的室内采光和色彩还原，建筑朝向西北和东南的长立面覆以一层铜色阳极氧化轧制铝材遮阳屏，该遮阳屏由大型椭圆构件组成，其几何形态根据朝向精心调整。

205 North Quay asserts its commercial value not by willful form, but by shrink-wrapping a slender, highly efficient structure in an equally resourceful, state-of-the-art enclosure tailored to Brisbane’s subtropical climate. To enable the façade’s high glazing ratio and VLT, and excellent interior lighting and color rendition, the building’s long northwest and southeast faces are veiled by a copper-anodized, rolled-aluminum sunscreen composed of large ovals, geometrically tailored to their orientation.

▼东北方向鸟瞰，Aerial from Northeast

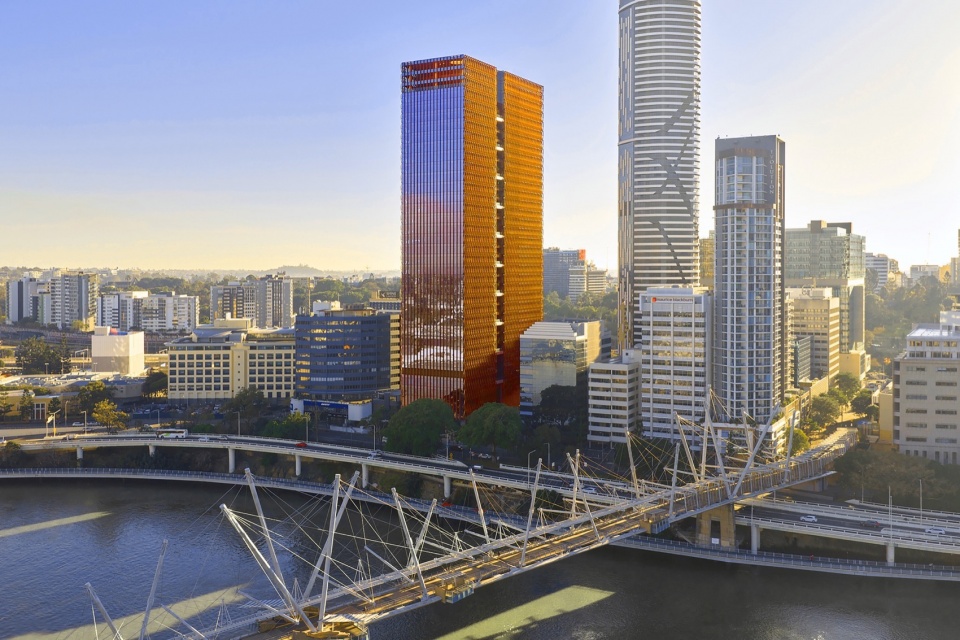

▼东南方向鸟瞰，Aerial from Southeast

椭圆构件的弧面遮阳表面利用几何刚度，比传统遮阳翅片和挑檐使用更少的材料，同时能阻挡更多的太阳得热。朝向西南和东北的较短立面则装饰有铜色阳极氧化挤压铝翅片。再结合贯穿办公楼层、如同垂直拉链般分布、种植着昆士兰本土树木的阳台，该围护结构使这座塔楼与其所处的昆士兰东南部地域环境紧密融合。

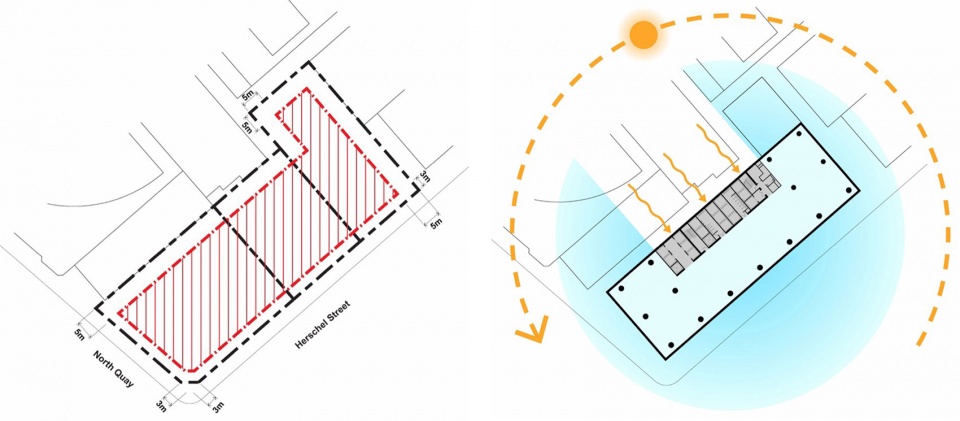

▼场地分析图&核心筒分析图，Site Diagram & Core Diagram

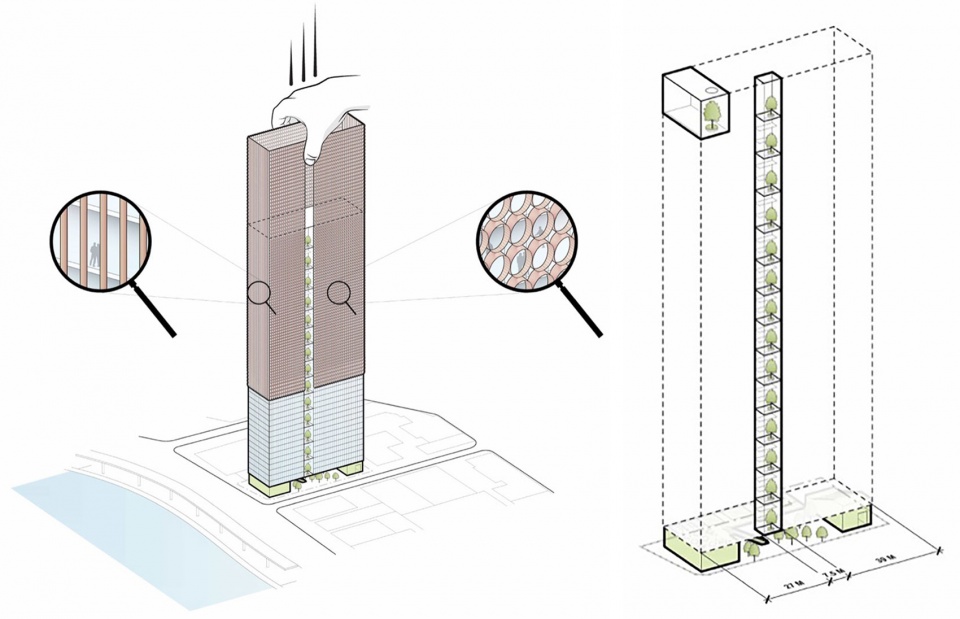

▼幕墙与面纱分析图&竖向拉链分析图，Curtain Wall & Veil Diagram / Vertical Zipper Diagram

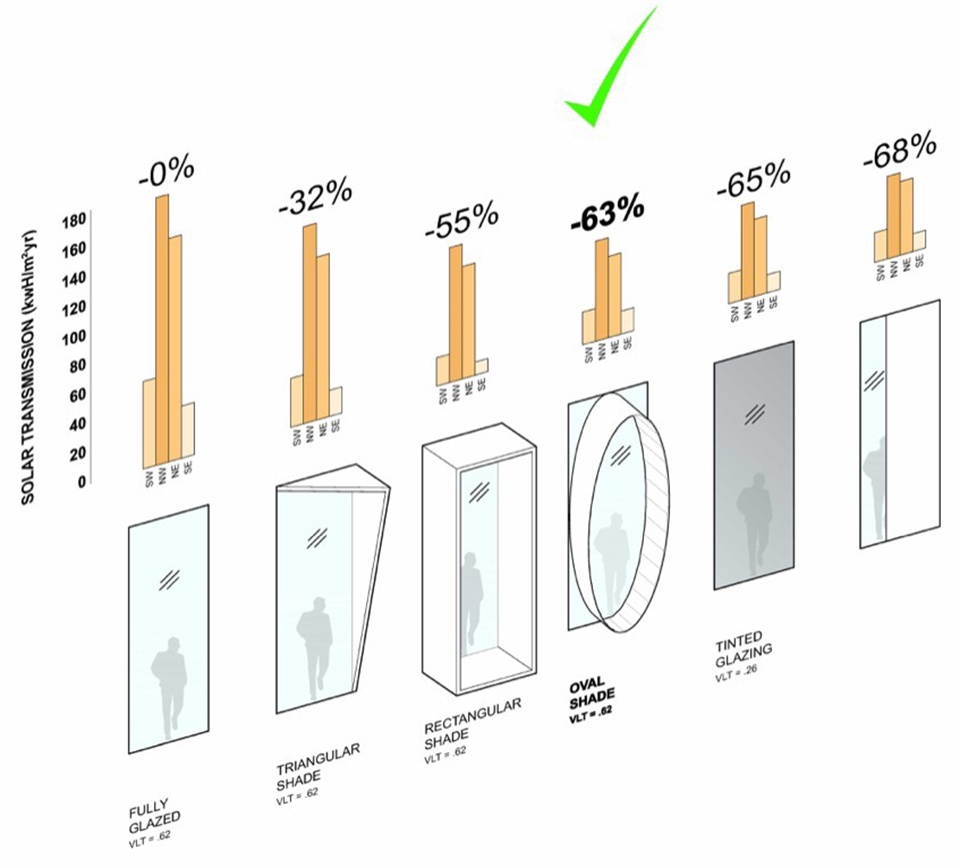

▼遮阳对比分析图，Shading Comparison Diagram

The ovals’ rolled shading surface leverages geometric rigidity to use less material than conventional fins and overhangs while also blocking more solar heat gain. The shorter southwest and northeast elevations are adorned with copper-anodized, extruded aluminum fins. Combined with a vertical zipper of office balconies harboring native Queensland trees, the enclosure situates the tower squarely in its South East Queensland context.

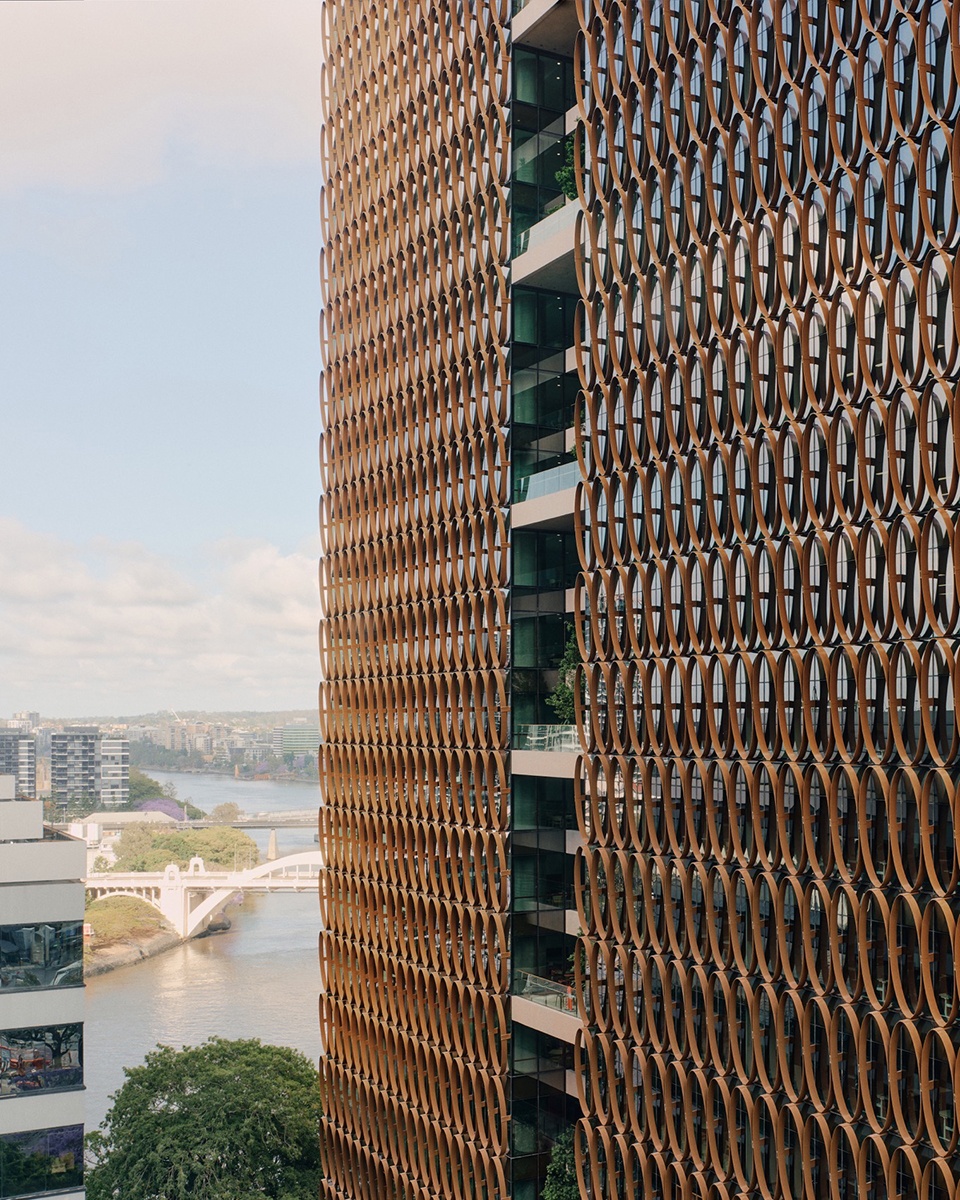

▼椭圆形遮阳板，Oval Sunscreen

▼竖向拉链，Vertical Zipper

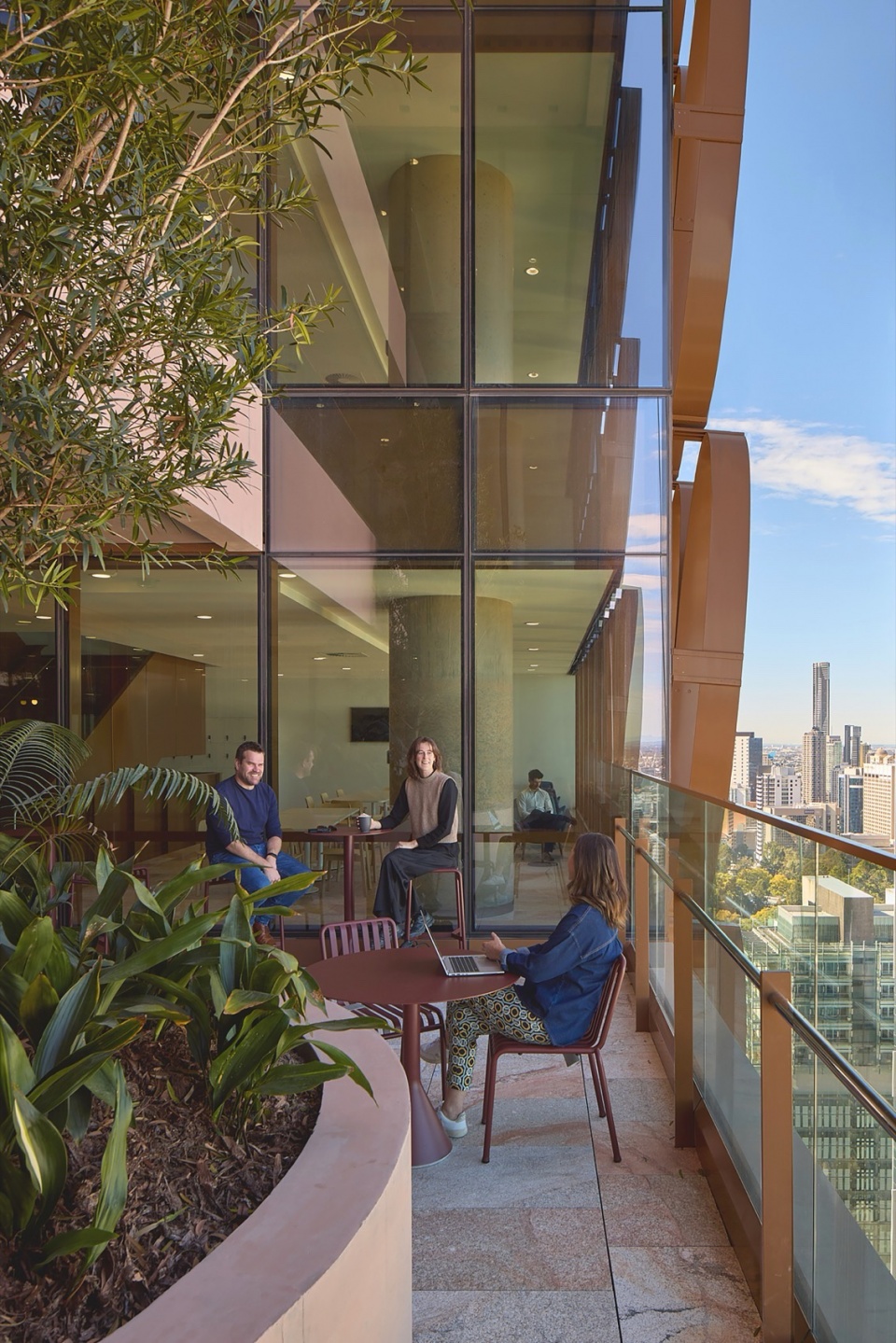

▼办公阳台，Office Balcony

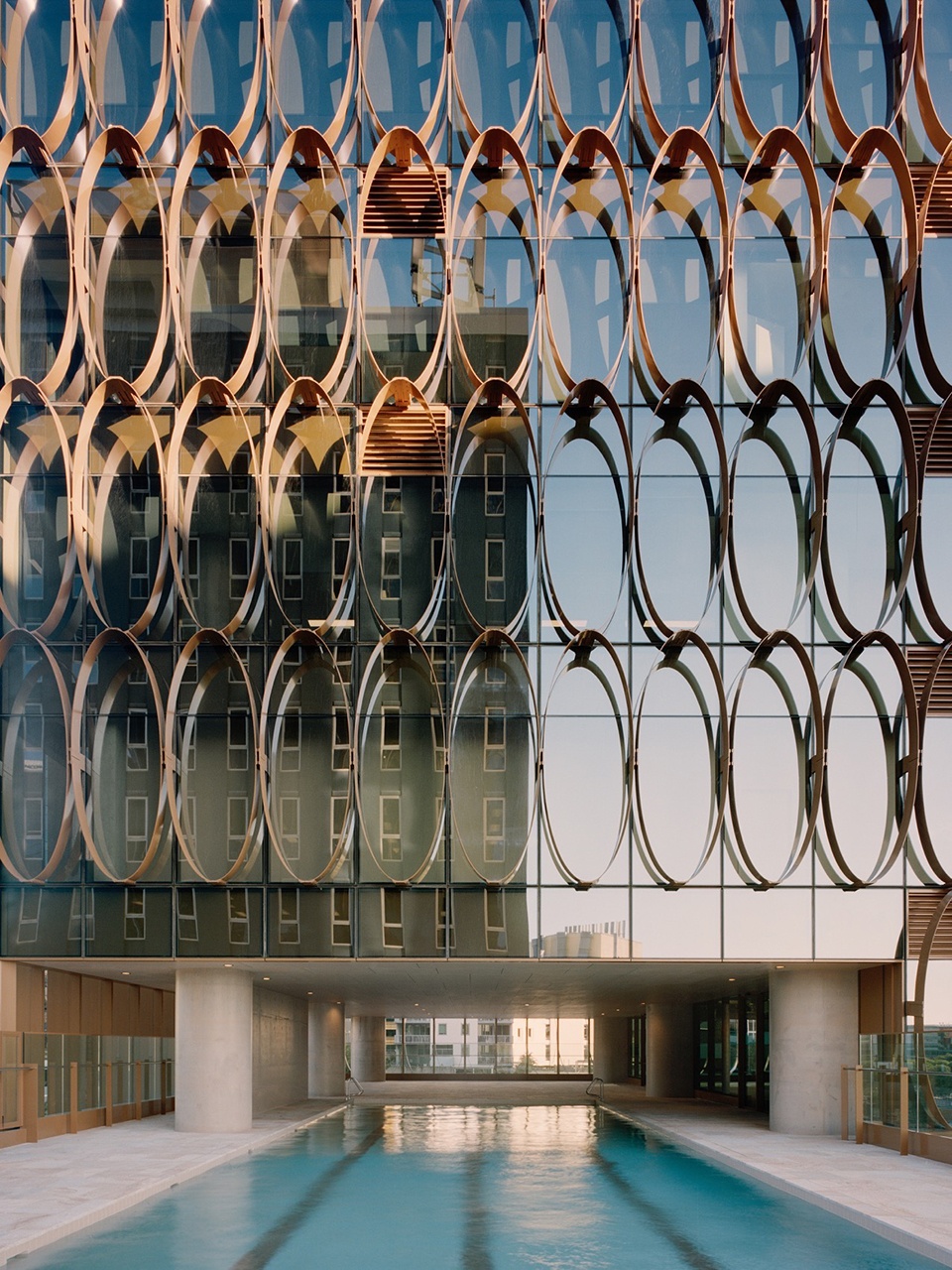

▼游泳池，Swimming Pool

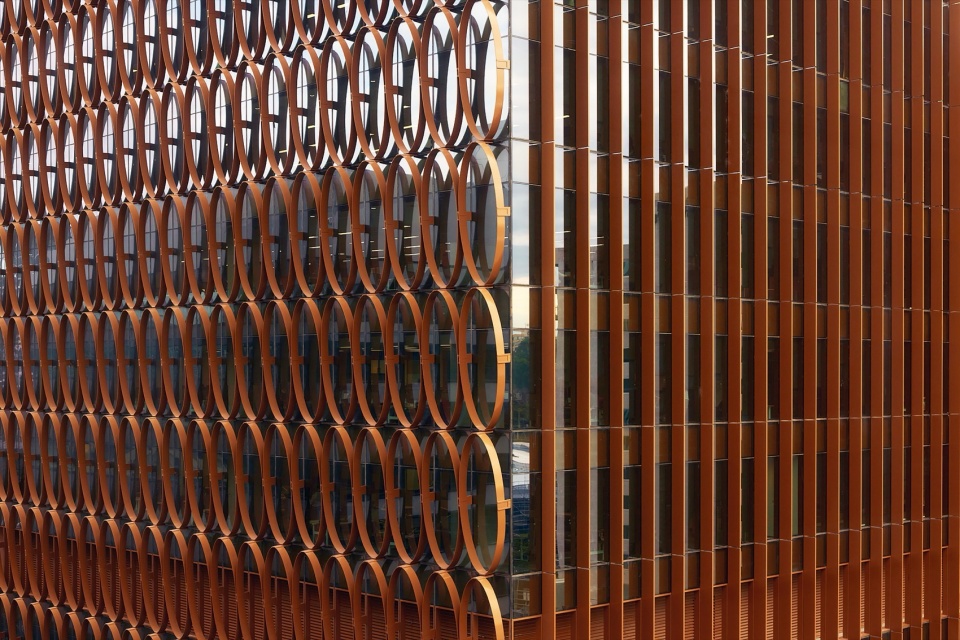

▼立面近景，Façade Close-up

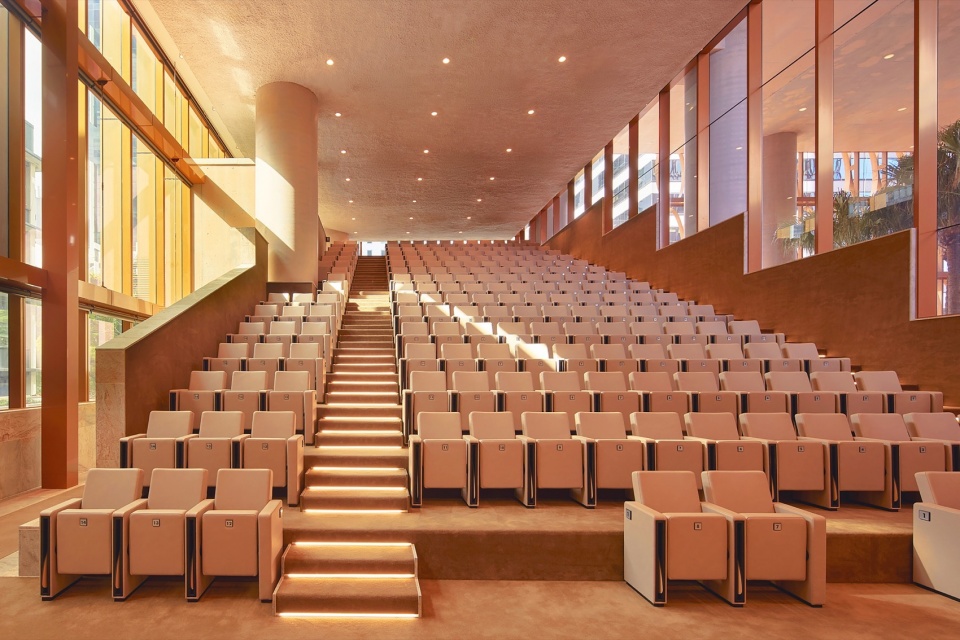

在首层地面，塔楼形成一个受保护的广场，一个两侧被向内朝向的零售商店环抱的“茧”形空间。该广场设有大胆的地面种植区，旨在容纳从市集、展览到演出等各类活动。位于东北侧的零售商店沿巷道延续贯穿整座建筑，加强了通往罗马街车站的步行连接。一个具有城市规模的210座礼堂可支持公共论坛和文化活动，而一个25米长的泳池和健身房则为租户及更广泛的社区提供了工作与生活的平衡支持。

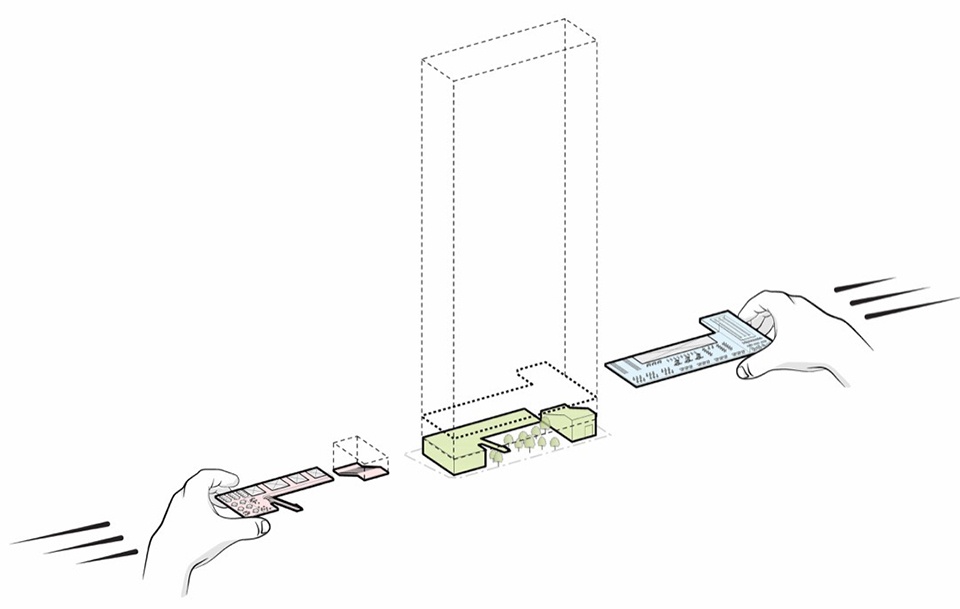

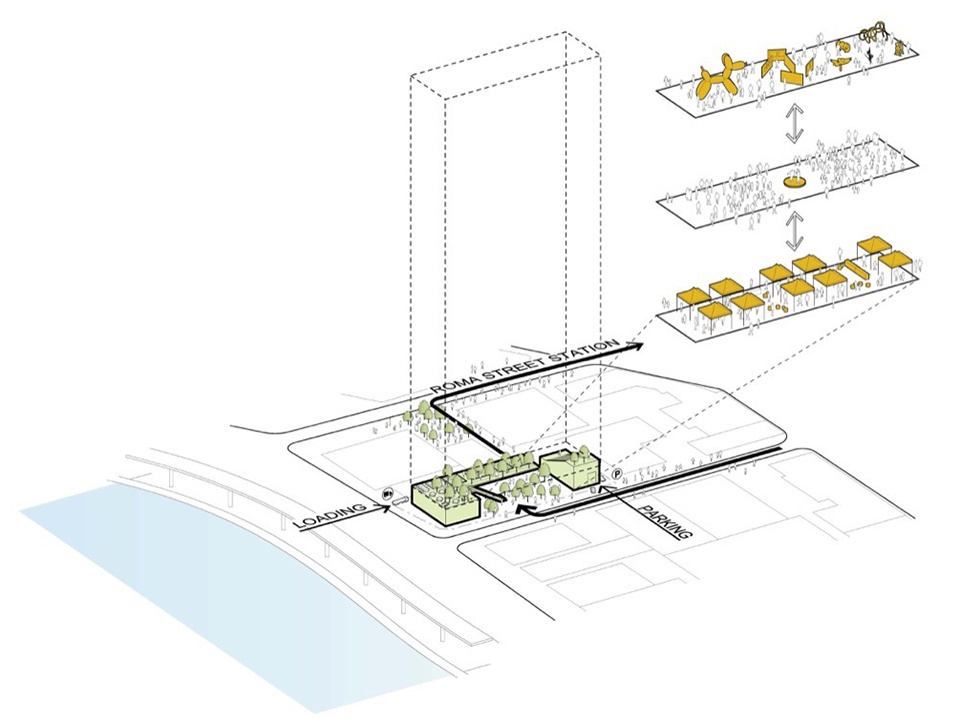

▼首层平面分析图，Ground Plane Diagram

At grade, the tower forms a protected plaza, a cocoon flanked by inward-facing retail on both sides. The plaza—featuring bold, in-ground planting—is designed to accommodate a variety of activities, from markets to exhibitions to performances. The northeastern bank of retail continues through the building along the lane, reinforcing the pedestrian connection to the Roma Street Station. A civically scaled 210-seat auditorium supports public forums and cultural events, while a 25-meter pool and gym support work-life balance for tenants and the wider community.

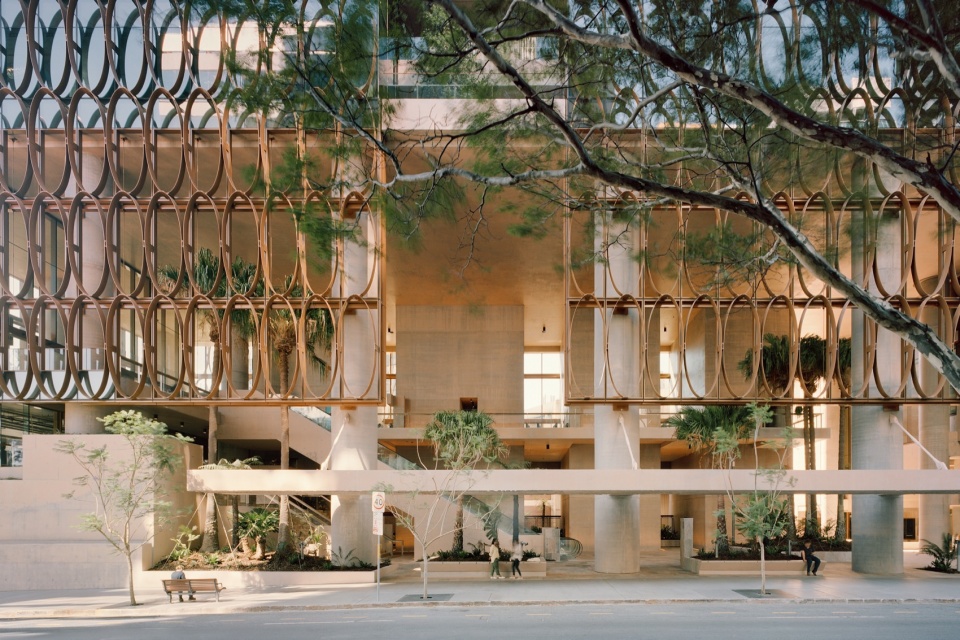

▼赫歇尔街入口，Herschel Street Entrance

▼入口雨棚，Entry Canopy

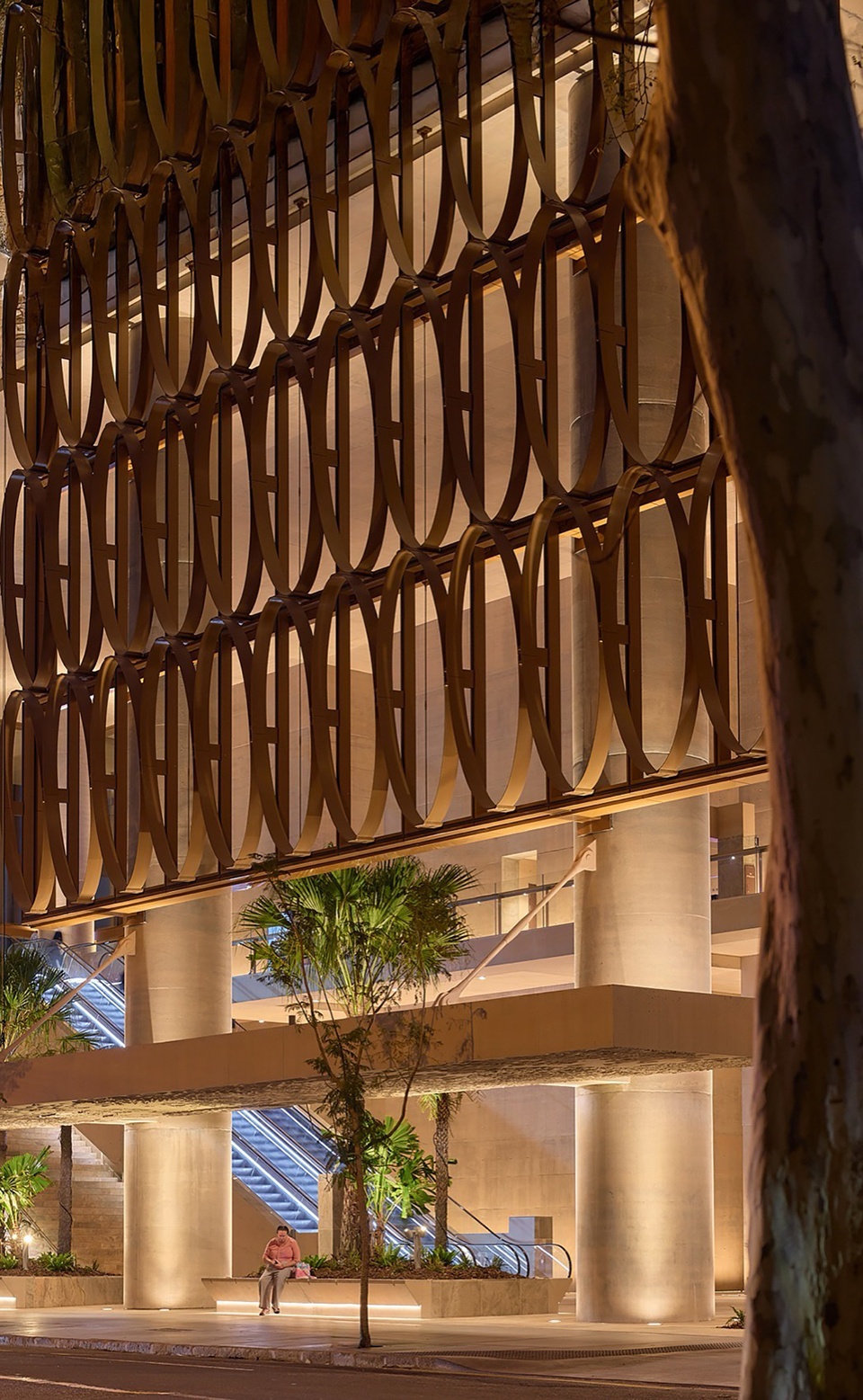

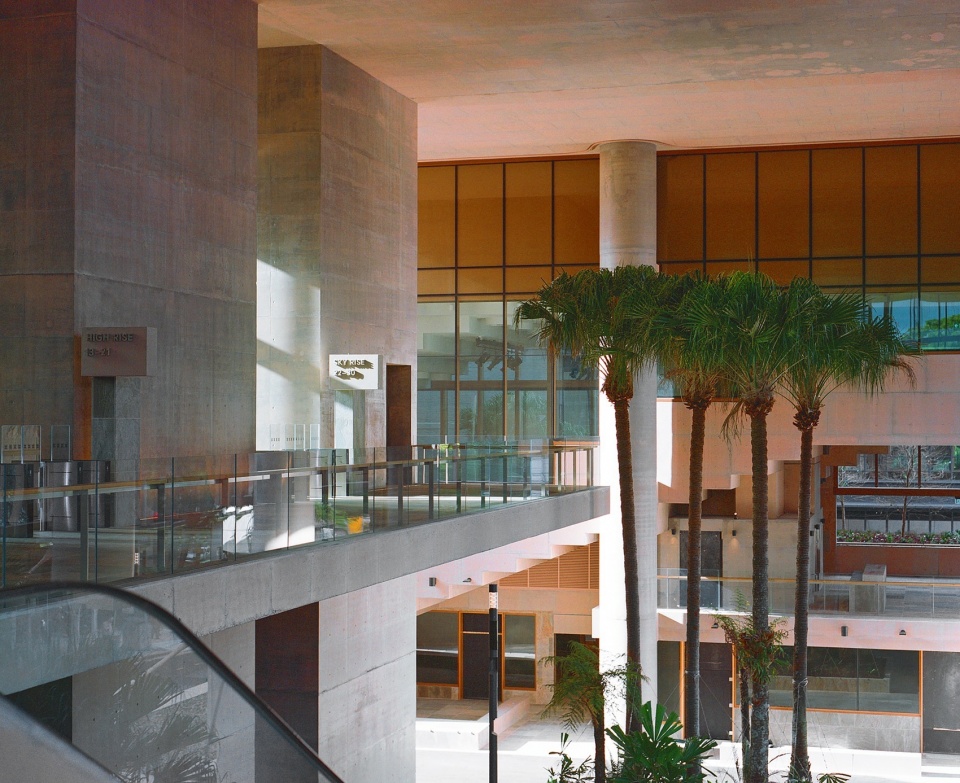

▼受保护的广场，Protected Plaza

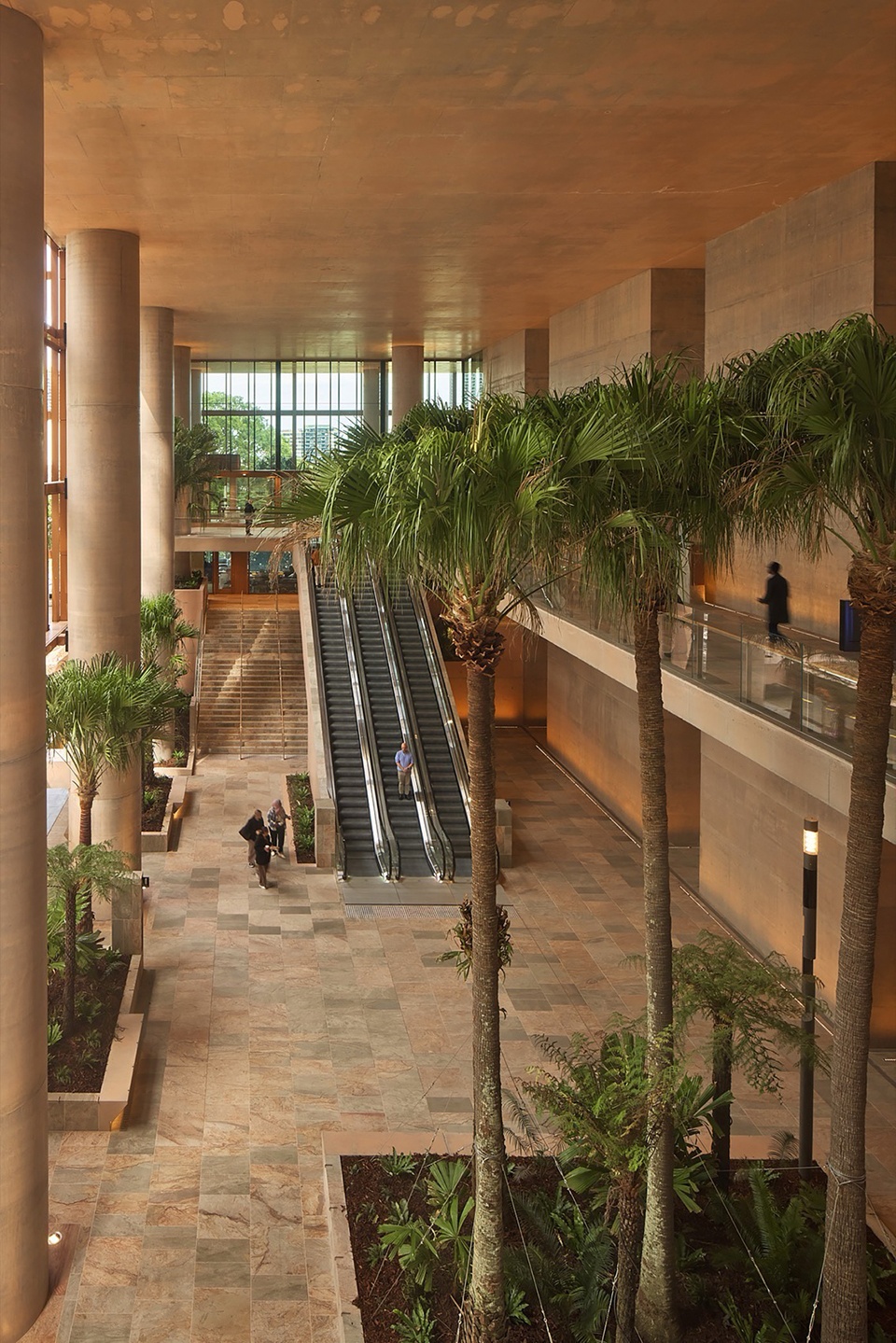

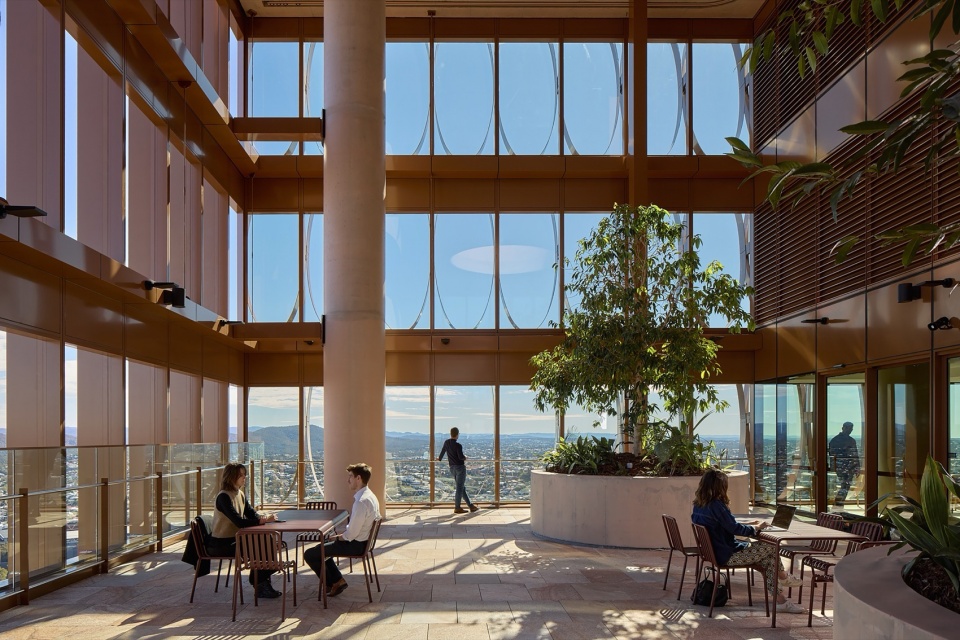

▼空中大堂，Sky Lobby

不断演变的工作场所需求通过适应性强的灵活楼面布局得以满足，建筑核心区域采用无柱设计，以实现最大化的使用效能。结构楼板中灵活的“软性区域”设置于每层，可实现楼层间的互联互通，促进租户间的协作与流动，而宽敞的户外露台则提供了会议空间、休憩场所和户外办公环境。健康与健身楼层内设25米泳池和健身房，为租户和更广泛的社区提供了工作与生活的平衡支持。

▼空中大堂与健康层分析图，Sky Lobby & Wellness Floor Diagram

Evolving workplace needs are addressed through adaptable, flexible floorplates, made column-free through the heart of the building for maximum utility. Flexible ‘soft spots’ in the structural floor slab are located at each level, permitting floor-to-floor interconnectivity and fostering collaboration and movement for tenants, while the generous outdoor terraces provide meeting spaces, respite, and outdoor work. The health and wellness floor, featuring a 25-meter pool and gym, supports work-life balance for tenants and the wider community.

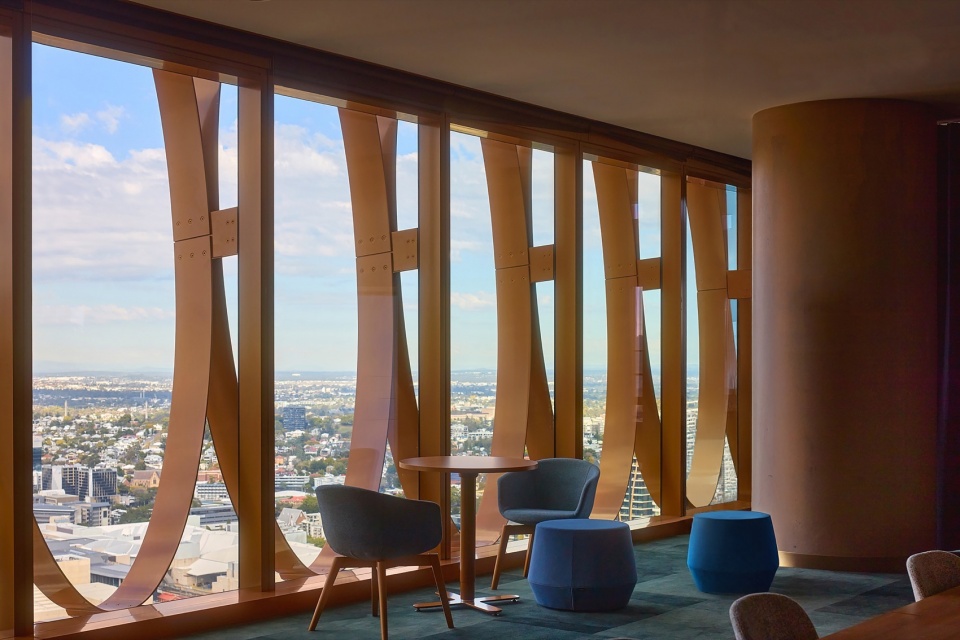

▼办公空间室内，Office Interior
