杭州东站，杭州/建筑

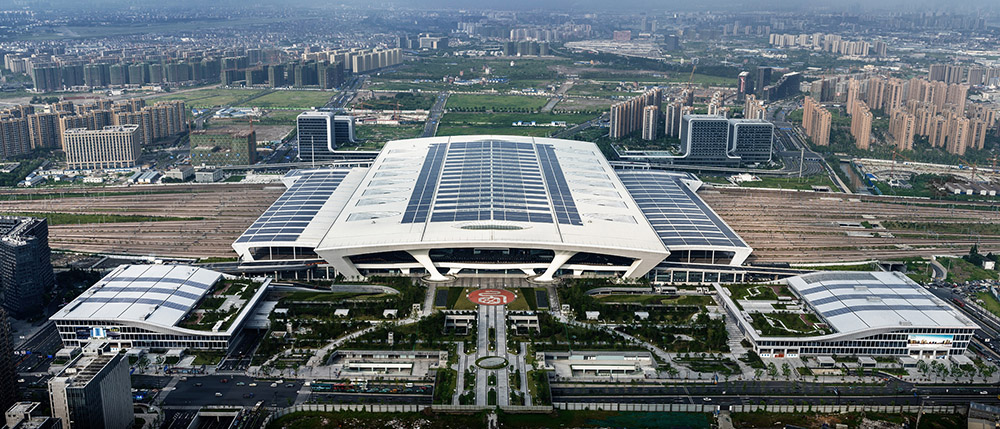

▼站区全景鸟瞰，Panoramic aerial view of the station

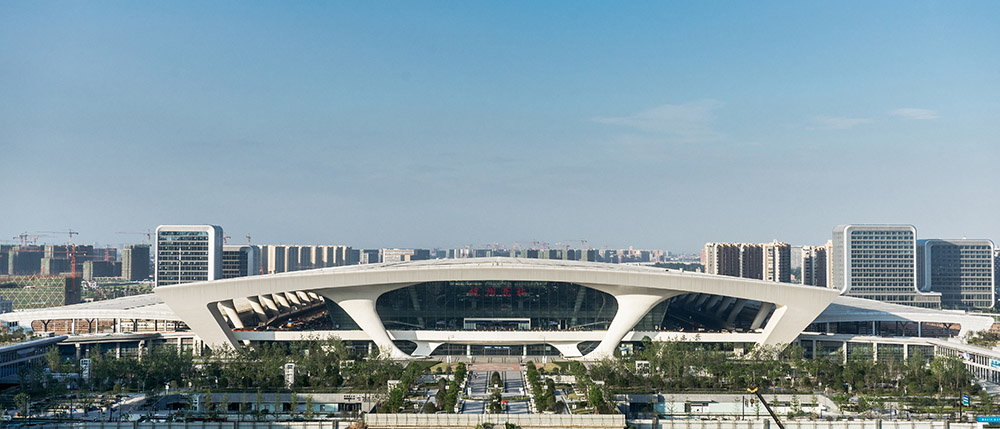

▼主站房正立面，One of the main entrances of the HangZhouEest Railway Station

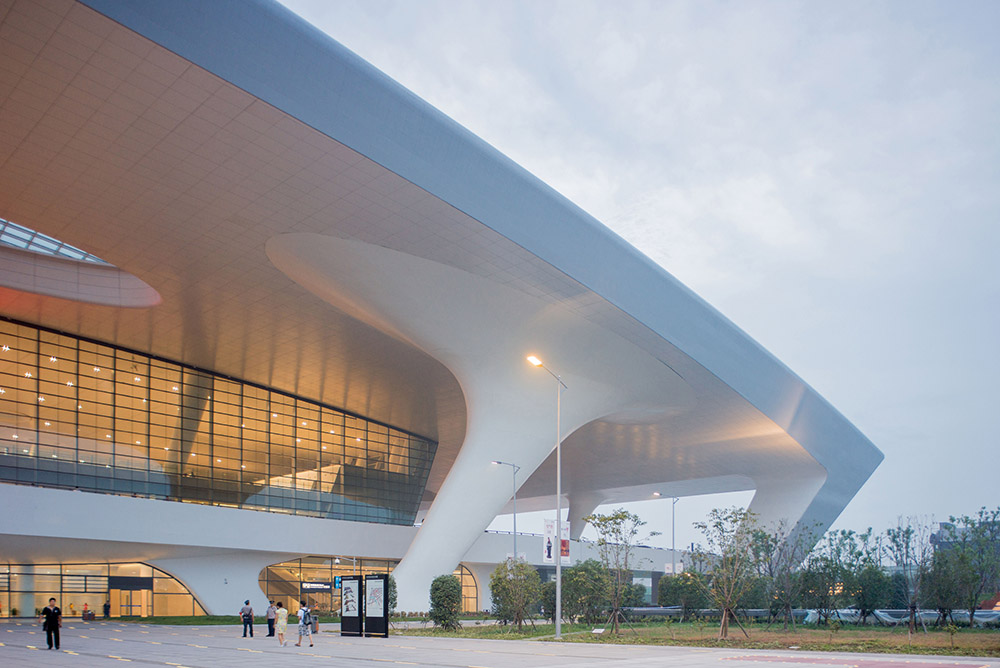

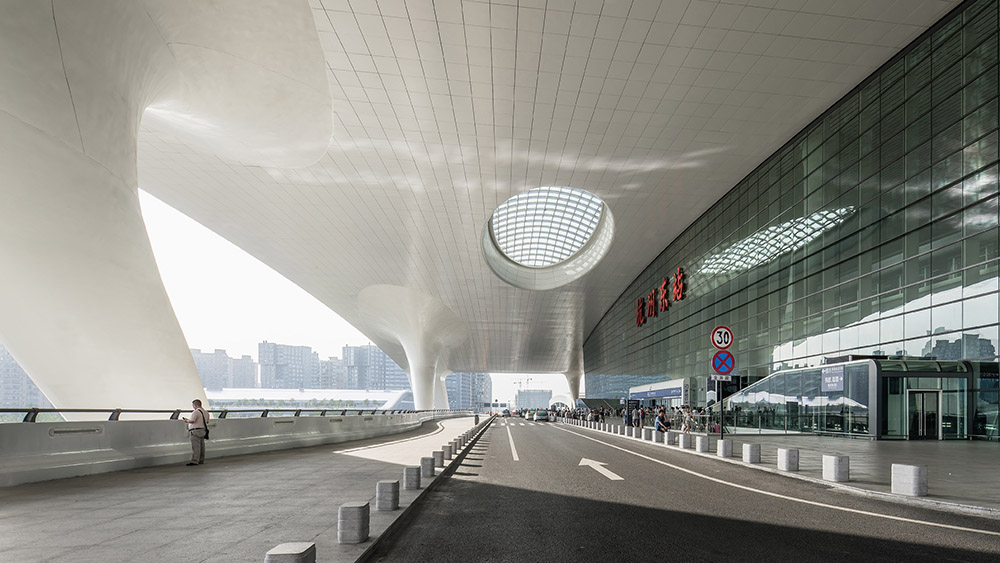

▼站房西进站口，West entrance of the HangZhouEest Railway Station

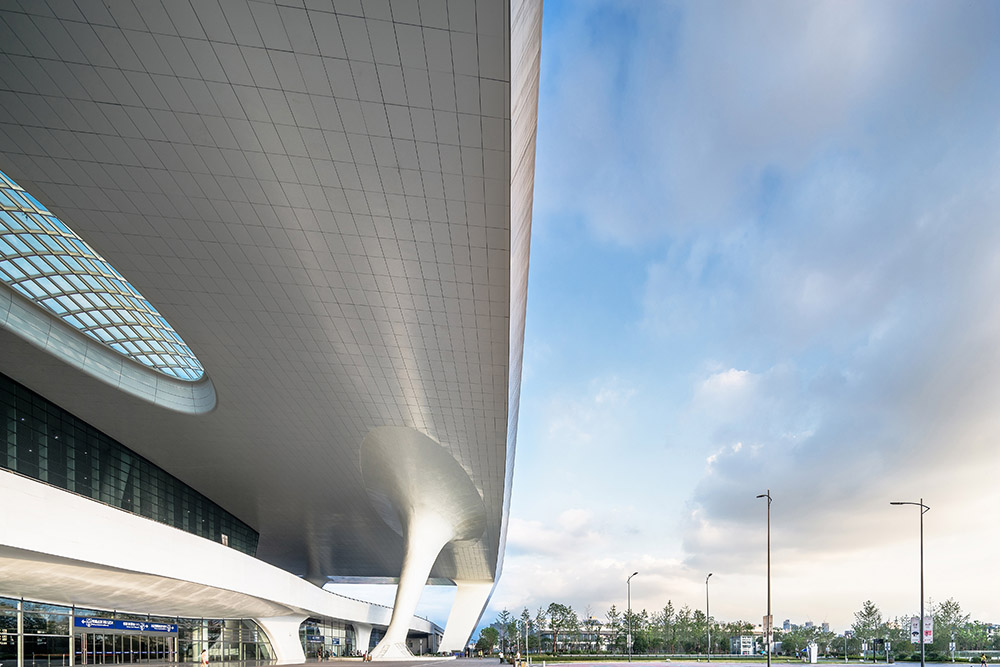

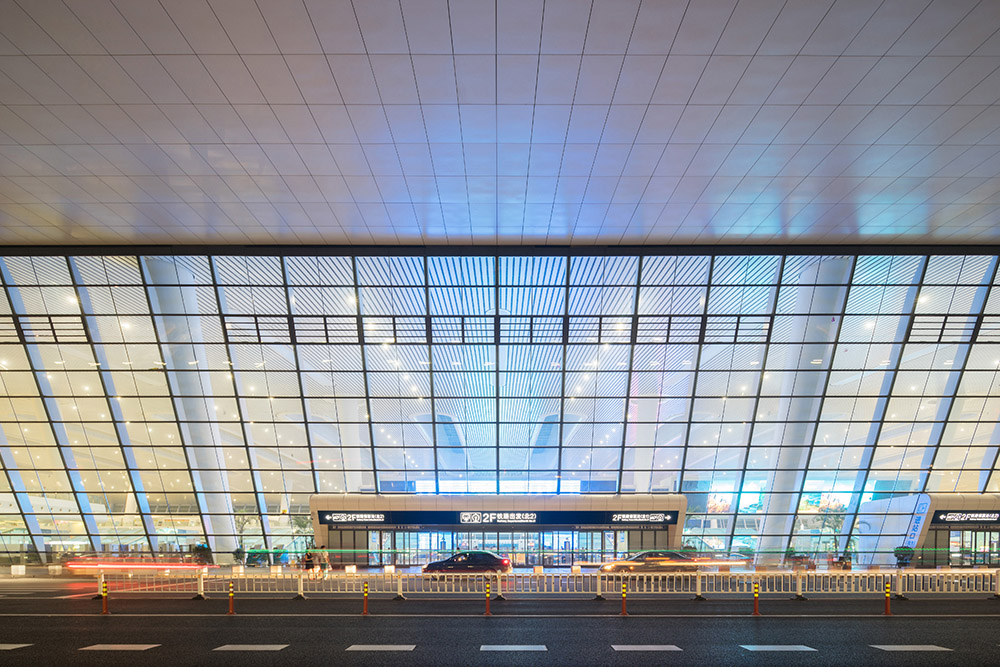

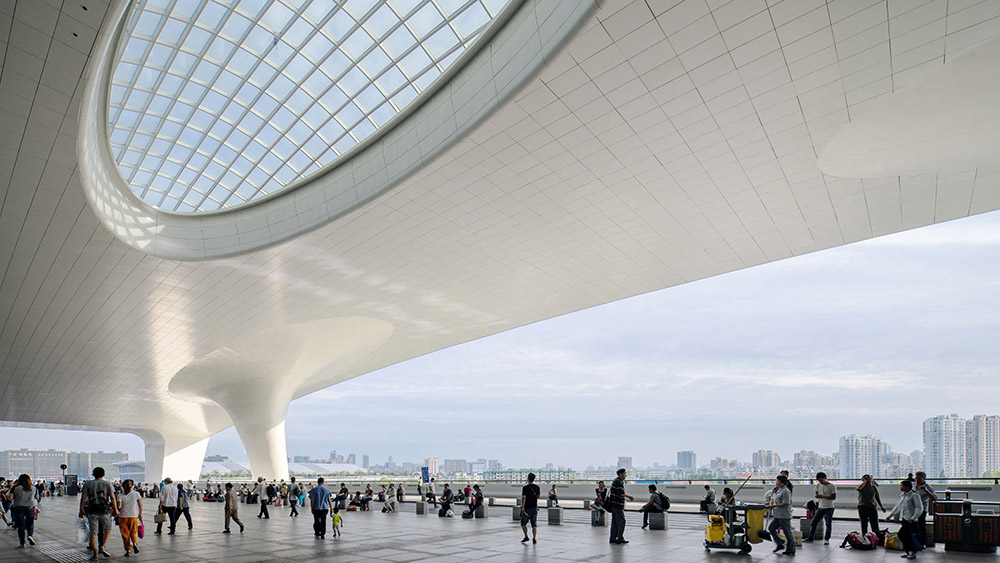

▼站房高架层入口平台，The entrance to the elevated floor of the east side station
▼站房高架层入口平台，The entrance to the elevated floor of the east side station
▼站房西进站口，West entrance of the HangZhouEest Railway Station

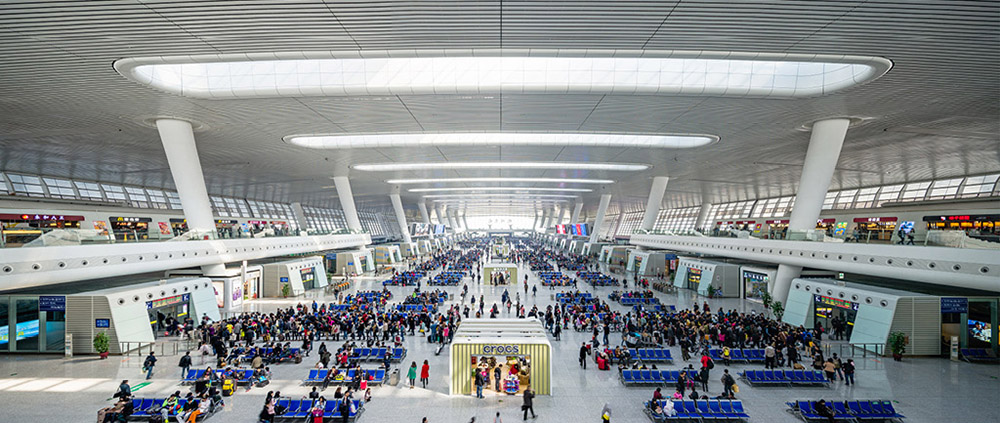

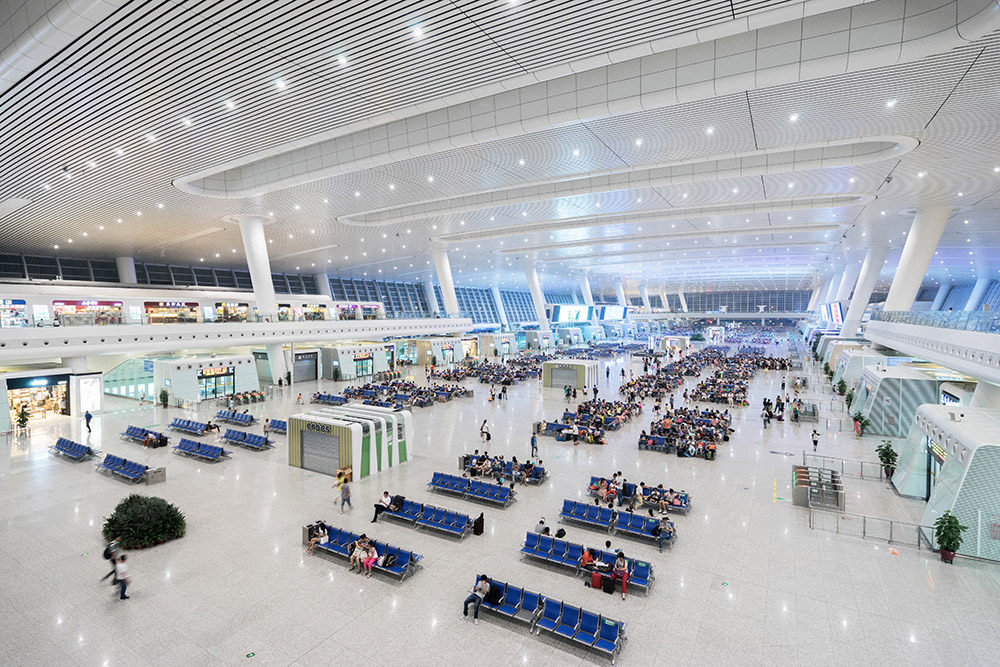

▼高架层旅客候车大厅，Waiting hall of the elevated floor in station
中南建筑设计院股份有限公司（CSADI）设计的新建杭州东站是汇集铁路、地铁、磁浮、公交、长途汽车、的士等多种交通方式和配套服务设施于一体并可实现立体无缝交通换乘的特大型交通枢纽站。车站建筑造型新颖、大气，富有张力的钢结构和流畅的室内空间，巧妙呈现了杭州“钱塘大潮”的意象。建筑形式充分展现了杭州“精致和谐、大气开放”的城市精神，充满时代特征。建筑形态与结构形式、建筑空间三者完美融合，充分体现了结构的真实性及合理性。主站房采用巨型空间桁架结构体系，主站房屋盖南北连续主跨280米，最大跨距81米，创造出体现结构力学之美的轻盈屋盖，充满动感和未来感。
The new Hangzhou east railway station designed by Central South Architectural Design Institute Co., Ltd. (csadi) is a super large transportation hub station that integrates various transportation modes and supporting service facilities such as railway, subway, maglev, bus, long-distance bus and taxi, and can realize three-dimensional seamless transportation transfer. The station building has a novel and atmospheric shape. The tensile steel structure and smooth indoor space skillfully present the image of "Qiantang spring tide" in Hangzhou. The architectural form fully shows the urban spirit of "exquisite, harmonious and open" in Hangzhou, which is full of the characteristics of the times. The perfect integration of architectural form, structural form and architectural space fully reflects the authenticity and rationality of the structure. The main station house adopts a huge space truss structure system. The main station house is covered from north to south, with a continuous main span of 280 meters and a maximum span of 81 meters, creating a lightweight roof reflecting the beauty of structural mechanics, full of dynamic and future feeling.
设计综合运用建筑体量自遮阳、活动外遮阳、热压自然通风等被动式节能措施，同时也采用了地源热泵、太阳能光伏发电系统等清洁能源技术。车站屋顶太阳能光伏系统是目前世界上最大规模建筑单体的屋面光伏系统应用之一，总计铺设多晶硅太阳能光伏组件7.9万m2，发电容量约10.04MWP。可持续的绿色车站理念将给社会带来巨大的节能环保示范效应。
The design comprehensively uses passive energy-saving measures such as building volume self shading, movable external shading and hot pressure natural ventilation. At the same time, it also adopts clean energy technologies such as ground source heat pump and solar photovoltaic power generation system. The station roof solar photovoltaic system is one of the largest single building roof photovoltaic system applications in the world, with a total of 79000 m2 of polysilicon solar photovoltaic modules and a power generation capacity of about 10.04 MWP. The concept of sustainable green station will bring huge demonstration effect of energy conservation and environmental protection to the society.
▼商业夹层，Part of Commercial interlayer

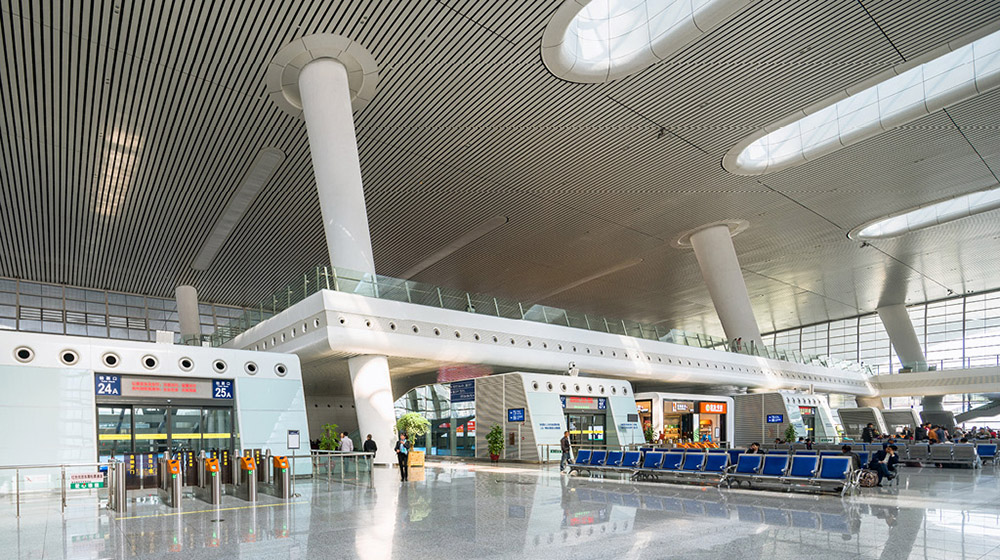

▼高架层旅客候车大厅，Waiting hall of the elevated floor in station
▼高架层北旅客入口，The entrance to the elevated floor of the north side station

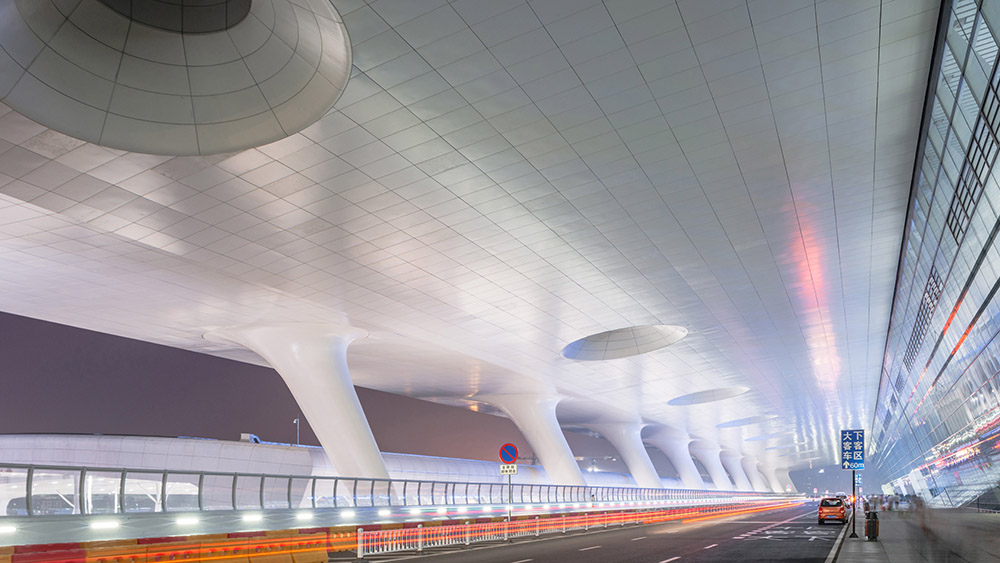

▼高架车道，Elevated driveway

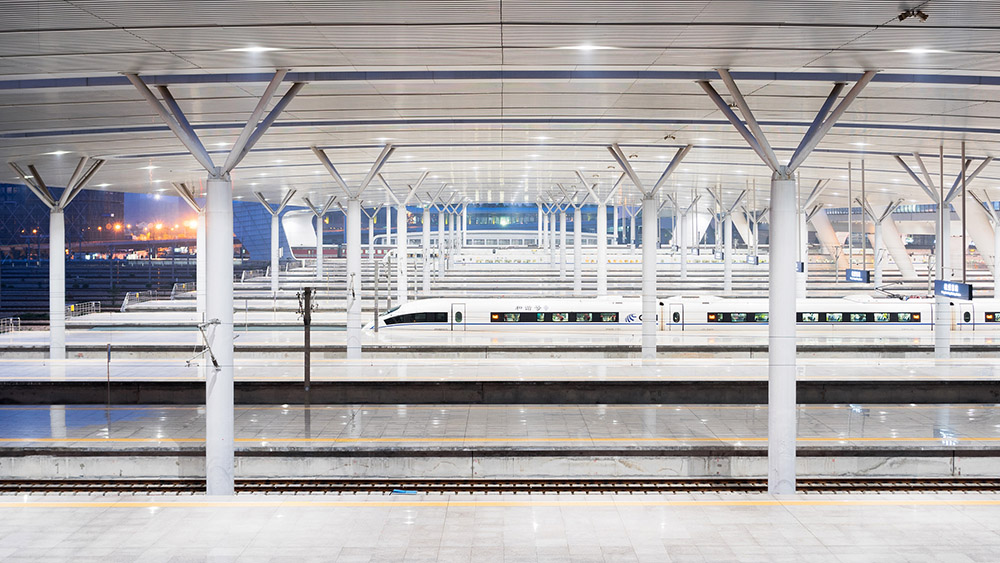

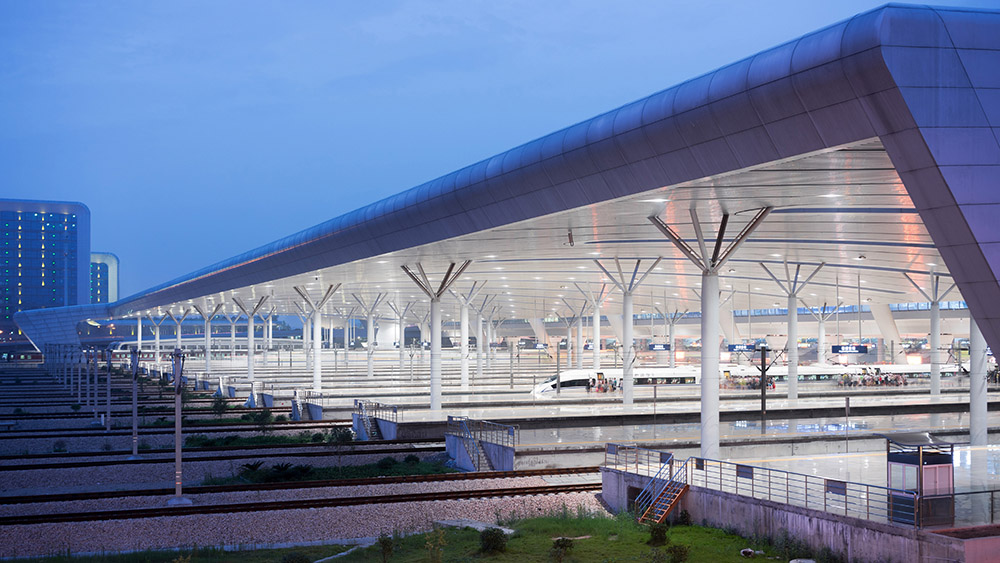

▼站台雨棚，The platform canopy
▼站台雨棚，The platform canopy

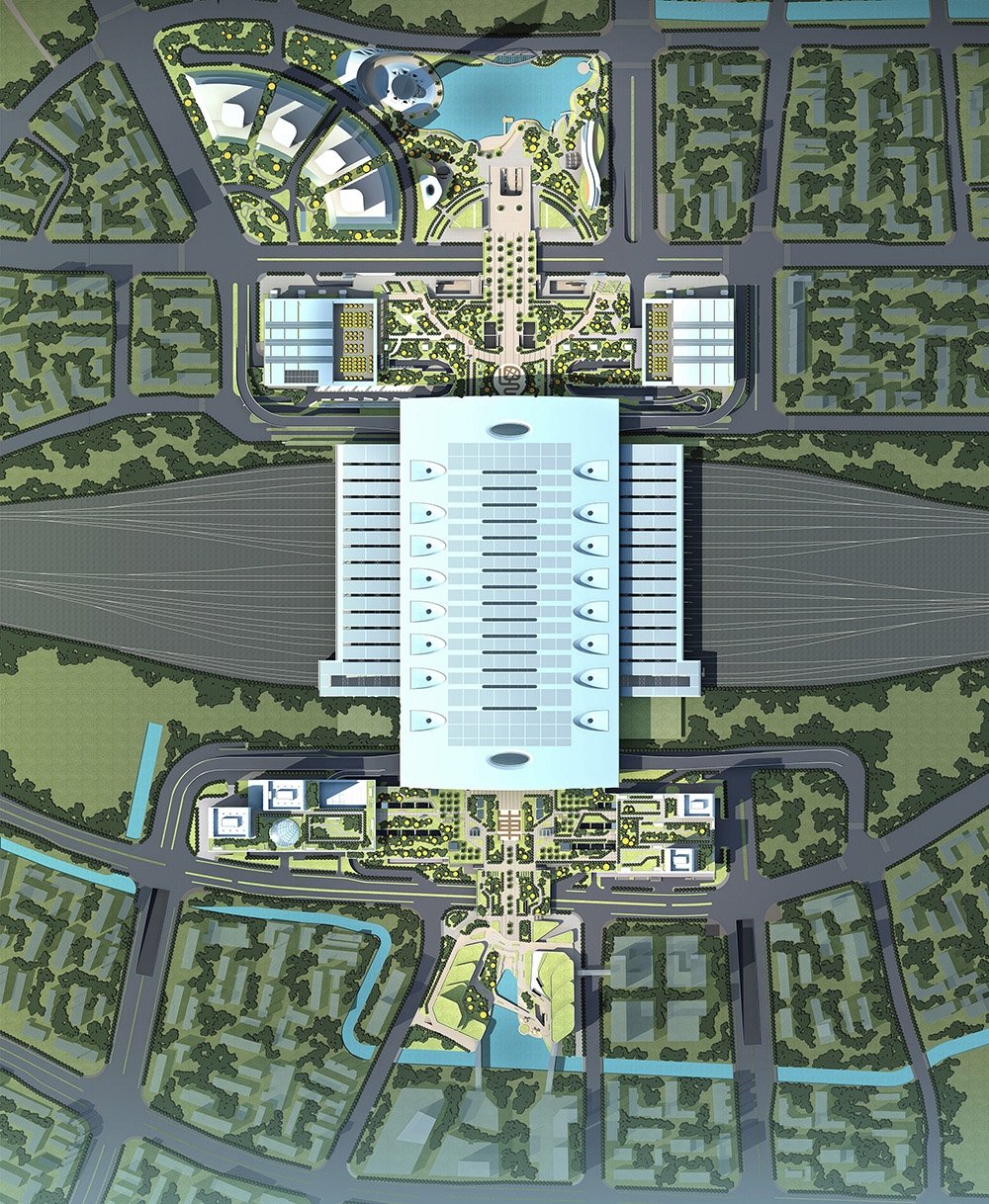

▼总平面图，Site plan

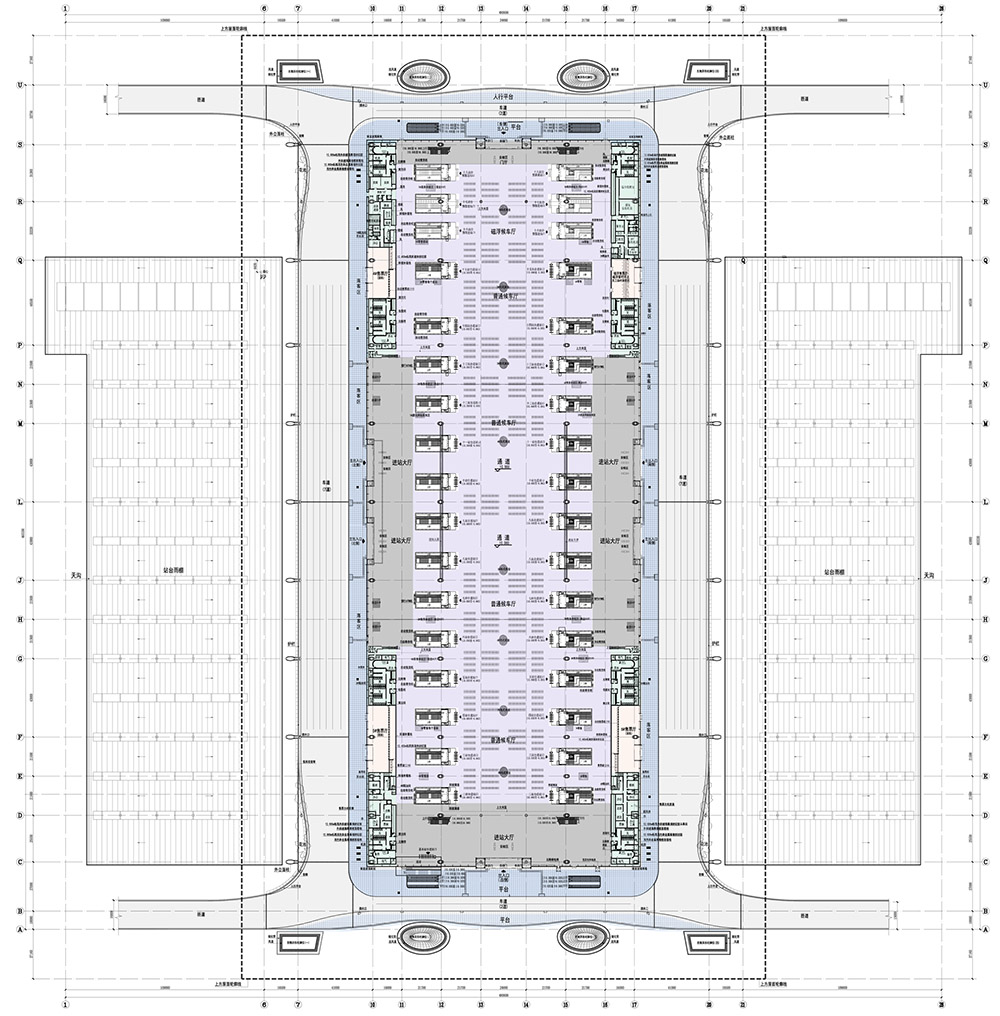

▼高架进站层平面，Floor plan of elevated level

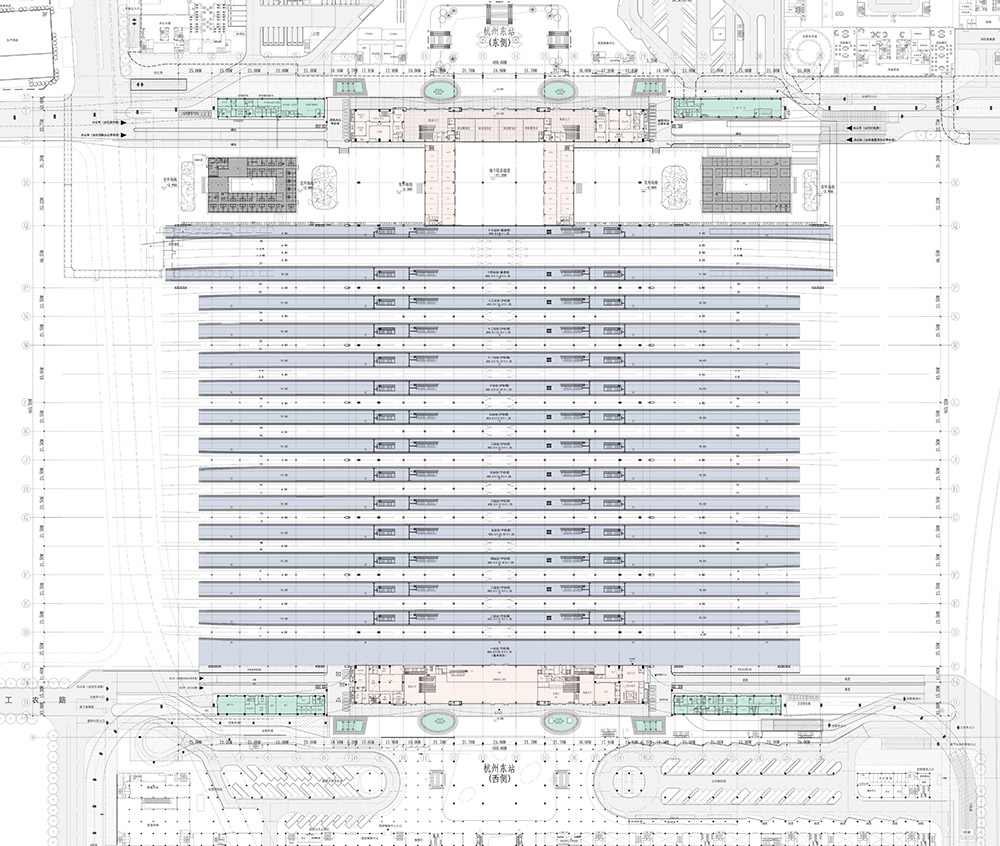

▼站台层平面，Floor plan of platform level

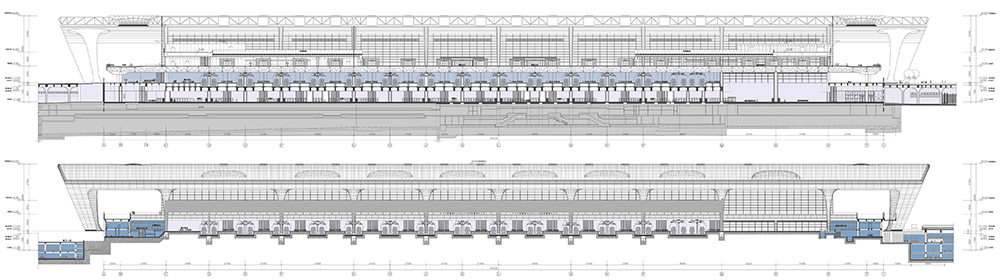

▼站房剖面图，Longitudinal section through center

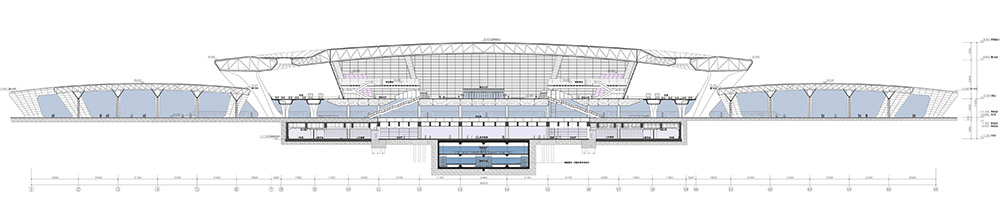

▼站房剖面图，Cross section through center
